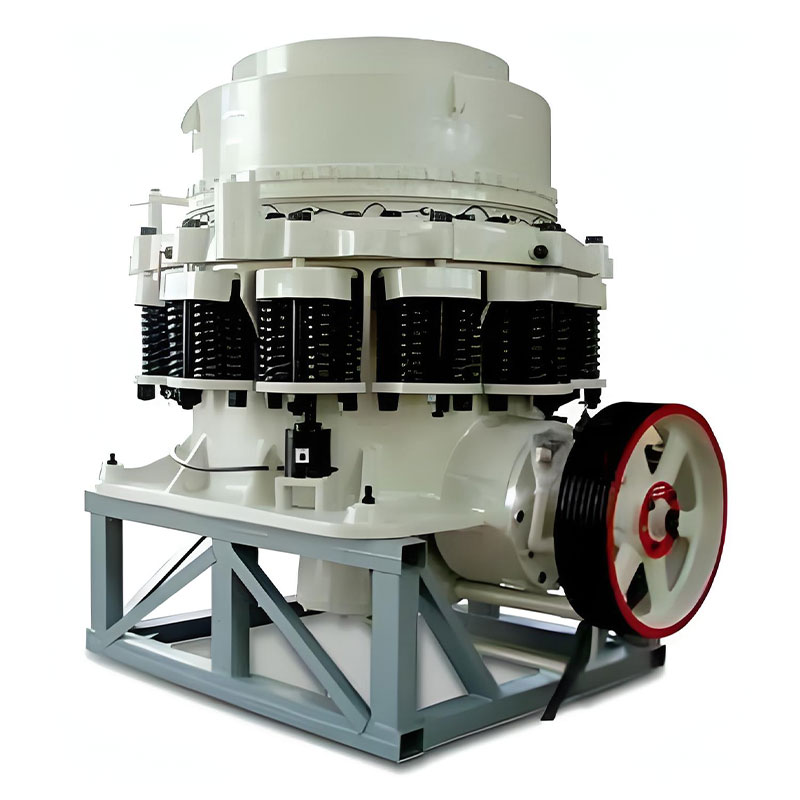

Compound cone crusher

The compound cone crusher series is widely used in the metallurgical industry, building materials industry, road construction industry, chemical industry and silicate industry. It is suitable for crushing various ores and rocks of medium and above medium hardness. The compound cone crusher adopts the principle of lamination crushing. Through the extrusion and shearing between the moving cone and the fixed cone, the raw materials such as limestone and clay are crushed evenly. This crushing method not only reduces the needle-like particles (the needle-like content is less than 10%) and improves the homogenization effect of the raw material, but also realizes dynamic particle size control through hydraulic adjustment of the discharge port to meet the requirements of raw material particle size at different process stages.

Contact Now

PREV：Cement grinding station
NEXT：Impact Crusher

Description

Product Features

The compound cone crusher has the characteristics of large crushing force, high efficiency, high processing capacity, low operating cost, convenient adjustment, economical use and long service life. The crushed product has uniform force, which reduces the circulating load. In medium and large-sized crushers, a hydraulic cavity cleaning system is used to reduce downtime. There are many cavity types for each specification of the crusher. Users can choose different cavity types according to different needs. Large specifications use a hydraulic insurance system. The spring insurance system is an overload protection device that allows foreign matter and iron blocks to pass through the crushing cavity without harming the crusher. This machine is divided into standard type and short head type. The standard type is generally used for coarse and medium crushing, and the short head is used for medium and fine crushing.

Leave a message

“If you have any comments or inquiries，please feel free to contact us”

Jiangsu Haijian Co., Ltd

Jiangsu Haijian Co., Ltd was established in 1970 and was restructured into a provincial privately-owned joint-stock company in 2003. The company currently employs over 300 people, with engineering and technical personnel accounting for 25% of the total workforce. It covers an area of 100,000㎡ and has a building area of 55,000㎡. We currently possess vertical lathes ranging from Φ2.5-10m in diameter; gear hobbing machines with Φ2-8m capacity; floor-type lathes with Φ5×16m and Φ7×20m capacities; overhead cranes ranging from 10-150t; plate rolling machines from 30-120; gas annealing furnaces measuring 6.5×6.5×18m; and automatic drying and spraying booths, with a total of 500 units/sets of various equipment.
Jiangsu Haijian Co., Ltd is a professional China Compound cone crusher Manufacturers and Compound cone crusher Company. We provide professional cement production equipment, industrial solid waste incineration equipment, and professional equipment for mining and metallurgical applications.We are a major manufacturing enterprise, a key backbone enterprise, and a primary export base for cement, power, environmental protection, and metallurgical and mining equipment in China. The company has the legal rights to independently manage the import and export of its products and is legally authorized to undertake general contracting for foreign projects.

Professionalism
Quality
One stop solution

EXPLORE MORE

Certificate

Environmental Certification

News Center

News Updates

Admin 2025-10-31
How to Clean an Active Lime Production Line？

Cleaning an active lime production line is a crucial regular maintenance task. It aims to remove accumulated material, rings, and nodules throughout the production line to ensure proper equipment operation, product quality, and production efficiency. Cleaning must adhere to the principles of "safety...
Read More
Admin 2025-10-24
Does a Lime Rotary Kiln Need Cleaning?

1. Why is it necessary to clean a lime rotary kiln? Ensuring product quality and output:Rings: This is the most common problem requiring cleaning. When the material in the kiln melts at excessively high temperatures, it adheres to the refractory bricks, forming rings of hard scale. Rings significant...
Read More
Admin 2025-10-17
What to Consider When Using a Lime Rotary Kiln？

1. Production process and key points of operation (1). Raw material (limestone) control Particle size and gradation: Strictly control the particle size range of limestone entering the kiln (such as 40-80mm). If the particle size is too large, it is difficult to burn through, and a "green core" will...
Read More

Industry knowledge

Compound cone crusher, a core crushing equipment used in modern mining, building materials, and metallurgy industries, demonstrates exceptional performance in crushing medium- and high-hardness materials thanks to its unique laminated crushing principle and intelligent control technology. Jiangsu Haijian Co., Ltd. provides professional equipment for cement production, industrial solid waste incineration, and mining and metallurgy applications. We are a professional manufacturer and company specializing in compound cone crushers. Our equipment achieves multiple goals: particle size control, reduced energy consumption, and excellent product shape through optimized crushing chamber geometry and hydraulic adjustment systems.

The compound cone crusher utilizes the principle of laminated crushing (inter-particle crushing), achieving material crushing through the multi-dimensional forces acting between the moving cone and the fixed cone:
Compression crushing: Driven by an eccentric sleeve, the moving cone performs a oscillating motion, forming a progressive crushing chamber with the fixed cone. This continuous compression causes the material to crack and break.
Shear crushing: An optimized crushing chamber curve (such as a parabolic shape) subjects the material to shear forces during movement, reducing over-crushing.
Inter-particle lamination: Material particles collide and break, increasing energy efficiency by over 30%.

The hydraulic system performs key functions:
Dynamic adjustment of the discharge opening: A hydraulic motor drives an adjustment ring, allowing stepless adjustment of the discharge size during operation (typically within a range of 3-60mm).
Overload protection: When uncrushable material enters the chamber, the hydraulic cylinder automatically relieves pressure, protecting the main unit from damage.

Compound cone crushers play a core role in multiple industries:
Metallurgy: Crushing metal ores such as iron ore and copper ore, providing uniform feed for beneficiation (particle size qualification rate ≥ 95%).
Building materials: Processing raw materials such as limestone and granite to produce high-quality aggregate (needle-flake content <10%).
Road construction: Producing asphalt concrete aggregate that meets GB/T 14685 standards.
Chemical industry: Crushing chemical raw materials such as phosphate rock and silica to meet reaction particle size requirements.
